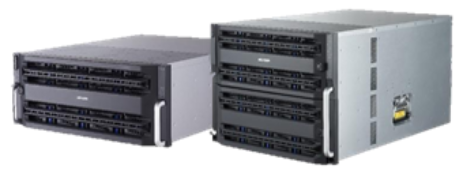

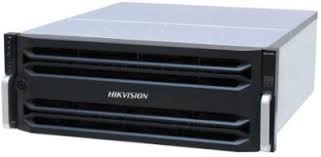

DS-A82 Series

Network Storage

The DS-A82 series is a dual controller-structure Hybrid SAN(Storage Area Network). Hikvision Hybrid SAN product creates a network with access to data storage servers, and it integrates Hikvision’s unique video direct streaming technology as well as supports IPSAN/FCSAN.

This flexible, cost-effective solution features ONVIF-support to third-party cameras, support for RTSP, and SIP protocols, and extended data retention. With no recording server needed, Hikvision’s Hybrid SAN systems truly make applications simple, flexible, and budget-friendly

  • Reliable System
  • Modular and no-cable design.
  • Dual controller in redundant mode.
  • Real-time cache.
  • Optional BBU (Backup Battery Unit).
  • High-Performance and Extendable Hardware Platform
  • 64-bit multi-core processor.
  • PCI-E 2.0 bus.
  • Four 1000M Ethernet interfaces per controller.
  • SAS interface for storage enclosure.
  • High-density chassis. 4U chassis: 24 HDDs.
  • HDD Detection and Repair/RAID Optimization
  • Detection before operation.
  • Detection in operation.
  • Fault repair.
  • RAID 0, 1, 3, 5, 6, 10, 50.
  • Global and local hot spare.
  • Quick RAID building.
  • Capability of cascading up to two storage enclosures behind a single SAS port.
  •  Virtual Drives up to 256

Advanced Data Protection

  • Synchronous backup of key information in system disk and HDD.
  • RAID-based tamper-proof data technology.
  • Auto data synchronization between devices.
  • Energy Efficient
  • CPU load balance.
  • Dual fan in redundant mode.
  • User-Friendly UI
  • Quick configuration.
  • Various alarm management.
  • SADP protocol supported.
  • SNMP supported.
  • Surveillance-Specialized Stream Media Direct Storage (Direct Streaming Mode)
  • Space pre-allocation strategy.
  • Direct storage for video stream and picture stream.
  • Supports direct IP camera/DVR/NVR streaming and recording.
  • Supports camera access through RTSP, ONVIF, and PSIA protocol.
  • Supports alarm/scheduled/manual recording.
  • N+1 technology.
  • Automatic network replenishment (ANR), timely uploading, and video loss alarm.
  • Lock key videos.
  • Supports both Direct Streaming Mode and IPSAN Mode.
  •  Search, play, and download videos by video type or video time.
Download

Performance

Controller

HDD

Network

Interfaces

General
