Transmission & Display

Feature and Function

• DS-3E0105D-E: 5 × 10/100 Mbps adaptive Ethernet ports
• Support ADI/ADIX
• Store-and-forward switching
• Support MAC address auto-learning and aging
• Simple and mini exquisite body
• Support desktop and wall-mounting
• Plug & play, and easy to use

• Excellent performance
• 64Gbps backplane capacity
• non-blocking design
• video streaming forwarding at full speed
• Gigabit optical-fiber transmission with up to 120Km distance
• High security and reliability
• Providing multiple user authentication modes such as 802.1x authentication
• Port-MAC-IP bind
• Special ARP invasion detection to effectively stop ARP cheat
• Flexible and various managements
• Adopt cluster technology, support device stacking and use an unified IP address for management
• Multiple management modes such as Console port, Telnet, Web and SNMP
• Powerful flow and broadcast management
• Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding
• Flow control in full-duplex mode or half-duplex mode
• The rate limitation in a minimum step of 64K is supported on the Ethernet port
• IP multicast and QoS
• Varied protocols
• 802.3af power supply on all ports
• 802.3at power supply with the maximum power supply on each port reaching up to 30W
• Configurable power supply priority guarantees, continuous power supply at key network nodes
• Configurable power consumption to save power and users' cost.

• Excellent performance
• 64Gbps backplane capacity
• non-blocking design
• video streaming forwarding at full speed
• Gigabit optical-fiber transmission with up to 120Km distance
• High security and reliability
• Providing multiple user authentication modes such as 802.1x authentication
• Port-MAC-IP bind
• Special ARP invasion detection to effectively stop ARP cheat
• Flexible and various managements
• Adopt cluster technology, support device stacking and use an unified IP address for management
• Multiple management modes such as Console port, Telnet, Web and SNMP
• Powerful flow and broadcast management
• Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding
• Flow control in full-duplex mode or half-duplex mode
• The rate limitation in a minimum step of 64K is supported on the Ethernet port
• IP multicast and QoS
• Varied protocols
• 802.3af power supply on all ports
• 802.3at power supply with the maximum power supply on each port reaching up to 30W
• Configurable power supply priority guarantees, continuous power supply at key network nodes
• Configurable power consumption to save power and users' cost.

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

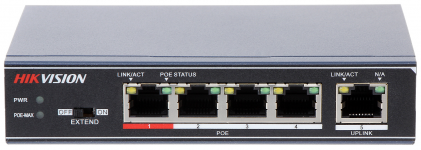

• 4 x 10/100Mbps Auto-MDIX PoE ports
• Provides up to 30 watts per PoE port
• PoE power budget 58W
• 4 kV surge protection for PoE ports
• IEEE 802.3x flow control support
• Plug-and-play installation
• 1 Gbps switching fabric
• 448 Kbits RAM Data Buffer
• 1K MAC address entries
• Sturdy metal enclosure

• Ports 1 to 4 support IEEE 802.3af standard.
• When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters.
• All ports support 6 kV lightning protection.
• This switch supports Auto MDI/MDIX.
• This switch supports store-and-forward.
• This switch supports MAC address auto learning and auto aging.
• This switch supports smart cache optimization.
• This switch supports desktop / wall mounting.

DS-3E0106P-E/M switches are layer 2 unmanaged PoE switches, providing advanced PoE power supply technology on the basis of high-performance access to ensure stable data upload. The switches support long range function.

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
• 8 x 10/100Mbps Auto-MDIX PoE ports
• Provides up to 30 watts per PoE port
• PoE power budget 123W
• 4 kV surge protection for PoE ports
• IEEE 802.3x flow control support
• Plug-and-play installation
• 1.8 Gbps switching fabric
• 1.25 Mbits RAM Data Buffer
• 4K MAC address entries
• Sturdy metal enclosure

Feature and Function

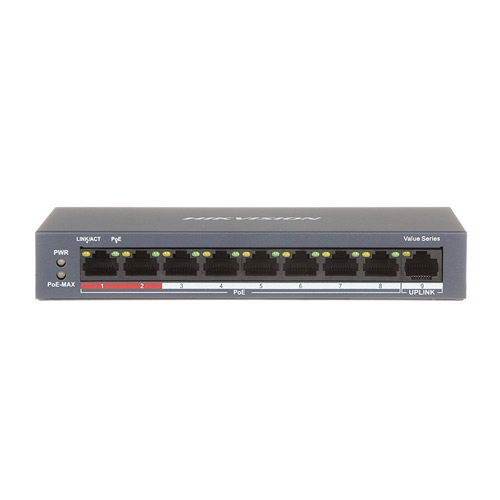

• 8 x 100M PoE ports and 1 x 100M Ethernet port.
• Supports IEEE802.3at/af.
• Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
• Supports high priority ports.
• Supports 8-core power supply.
• Up to 250 m transmission distance.
• PoE port with 6 KV surge protection.
• Supports PoE output power management.
• 100M network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Fan-free design with high reliability.

• 9*10/100 Base-TX Ethernet ports
• Supports standard and EXTEND network mode
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards
• Store-and-Forward switching
• 4K MAC address table and MAC address learning
• 1.8 Gbps backplane bandwidth
• All-mental construction
• Desktop and wall-mounted installation

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

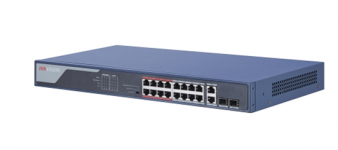

• 16x10/100Mbps Auto-MDIX PoE ports
• Provides up to 30 watts per PoE port
• PoE power budget 230W
• 4 KV surge protection for PoE ports
• IEEE 802.3x flow control support
• Plug-and-play installation
• 7.2 Gbps switching fabric
• 2.75 Mbits RAM Data Buffer
• 4K MAC address entries
• Sturdy metal enclosure

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

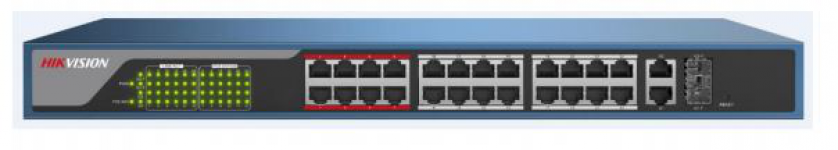

• 24x10/100Mbps Auto-MDIX PoE ports
• Provides up to 30 watts per PoE port
• PoE power budget 370W
• 4 KV surge protection for PoE ports
• IEEE 802.3x flow control support
• Plug-and-play installation
• 8.8 Gbps switching fabric
• 2.75 Mbits RAM Data Buffer
• 4K MAC address entries
• Sturdy metal enclosure

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standard

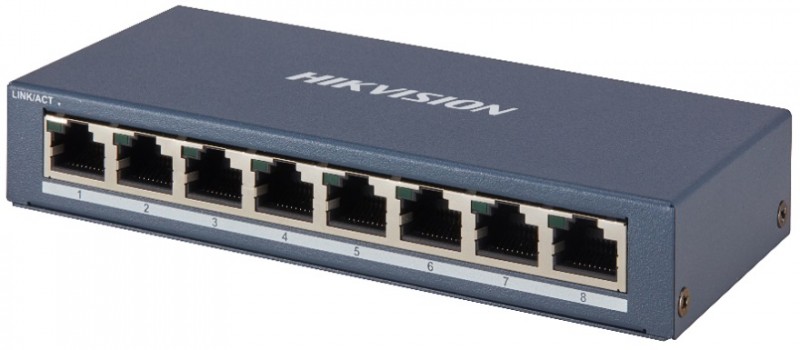

• 8*10/100/1000Mbps auto-negotiation RJ45 Ports
• Plug and play without configuration
• Up to 16 Gbps back panel bandwidth and supports non-blocking wire-speed forwarding
• LEDs to easily monitor link speed, activity and find problems in time
• IEEE802.3x full duplex flow control and half duplex backpressure flow control
• Loop detection and loop prevention
• Up to 4 kV lightning-proof for each port
• Desk & wall-mounting installation.
• Full-metal & larger shell ensure effective cooling

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standard
• 8*10/100/1000Mbps auto-negotiation RJ45 Ports
• Plug and play without configuration
• Up to 16 Gbps back panel bandwidth and supports non-blocking wire-speed forwarding
• LEDs to easily monitor link speed, activity and find problems in time
• IEEE802.3x full duplex flow control and half duplex backpressure flow control
• Loop detection and loop prevention
• Up to 4 kV lightning-proof for each port
• Desk & wall-mounting installation.
• Full-metal & larger shell ensure effective cooling

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standard
• 8*10/100/1000Mbps auto-negotiation RJ45 Ports
• Plug and play without configuration
• Up to 16 Gbps back panel bandwidth and supports non-blocking wire-speed forwarding
• LEDs to easily monitor link speed, activity and find problems in time
• IEEE802.3x full duplex flow control and half duplex backpressure flow control
• Loop detection and loop prevention
• Up to 4 kV lightning-proof for each port
• Desk & wall-mounting installation.
• Full-metal & larger shell ensure effective cooling

• 802.3af/at PoE standard
• 8-core power supply technology, reducing the power circuit loss
• Data monitor and control for the important ports
• EXTEND mode available to extend the network cable transmission distance to 250 meters
• Buffer optimization to guarantee the video data transmission
• VLAN configurable
• Port trunk
• STP, multicast and port mirroring

• 802.3af/at PoE standard
• 8-core power supply technology, reducing the power circuit loss
• Data monitor and control for the important ports
• EXTEND mode available to extend the network cable transmission distance to 250 meters
• Buffer optimization to guarantee the video data transmission
• VLAN configurable
• Port trunk
• STP, multicast and port mirroring

• 802.3af/at PoE standard
• 8-core power supply technology, reducing the power circuit loss
• Data monitor and control for the important ports
• EXTEND mode available to extend the network cable transmission distance to 250 meters
• Buffer optimization to guarantee the video data transmission
• VLAN configurable
• Port trunk
• STP, multicast and port mirroring

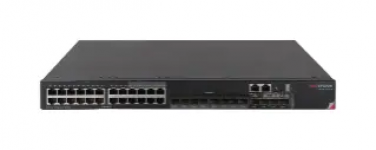

• Implement hardw are-based IPv4/IPv6 dual-stack platform, rich IPv4 and IPv6 Layer 3 routing protocols, multicast technology, and policy routing mechanism to provide users w ith a complete IPv4/IPv6 solution.
• Supports SNMP traps or syslog w ith LLDPtable changes, STP Topology Changes, New root bridge, Optical Pow er SFP threshold alarms, Interface UP & Dow n.
• Supporting virtualization technology is to connect multiple physical devices to each other and make them virtual as a logical device. Users can view these multiple devices as a single device for management and use.
• Support Auto MDI-II/MDI-X uplink for all the tw isted pair ports.
• Supports 64 Gbps full duplex line rate traffic.
• Support 802.1D spanning tree control/RSTP support and MSTP.
• Support 802.1Q VLAN, 802.1p Priority queues.
• Supports centralized MAC address authentication, 802.1x authentication, and PORTAL authentication. It supports dynamic or static binding of user IDs such as user accounts, IP, MAC, VLAN, and port. Also support dynamics implementing of user policies (VLAN, QoS, and ACL).
• Provides enhanced ACL control logic, supports large-capacity ingress and egress port ACLs, and supports VLAN-based ACL

implementation. This simplifies the user configuration process and avoids the w aste of ACLresources.

• Multiple reliability protection at the device level and link level.
• As per EN61000-4-5 standard supports Surge Protection on pow er input and on Ethernet ports as per EN61000-4-5 standard\
• Support ITU-T G.8032 Ethernet Ring protection for Loop Protection and fast convergence time (Sub 50 ms) in ring topologies/ IEEE 802.1W RSTP for Sub Second failover.
• Support management features viz. Web-based GUI/SSH, SNMP, TFTP Client System Log, ,supports port Trunking of 2 Nos. GE/10GE ports
• Supports the pluggable AC and DC pow er modules and the pluggable dual-fan reliability design. The AC or DC pow er modules can be flexibly configured according to the requirements of the actual environment. In addition, alarms of the pow er supply and fans are supported. The fan speed can be adjusted automatically based on changes in temperature. These designs give the device greater reliability.
• L2 to L4 packet filtering is provided to provide traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN. A flexible queue scheduling algorithm is provided, w hich can be set based on ports and queues at the same time, and supports three modes: SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR.
• Supports jumbo frame & should have at least 16K MAC address.
• Supports 802.1W RSTP for Ring /STP topology.
• Supports Quality of Service (QoS) features viz. Priority Queue, Class of Service (CoS), Rate Limiting (Bandw idth Control), Strict Priority Queue (SPQ), Weighted Round Robin (WRR) or better, DOS attack prevention.
• Supports IEC 60950, CE.FCC
• Designed for 24x7 environment.
• Supports Link Layer Discovery Protocol.\
• Supports Broadcast/Multicast/Unicast Storm Control.

Support multi-source agreement (MSA) Modules

Support DDMI/DOM feature

CE and FCC certificated
