Switch

DS-3E0505-E switch is a layer 2 gigabit Ethernet switch, providing 5 1000M Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

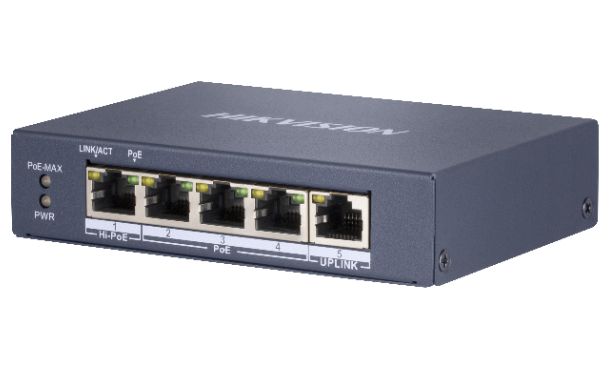

DS-3E0505HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

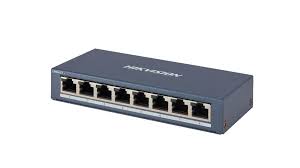

DS-3E0508-E(B) switch is a layer 2 gigabit Ethernet switch, providing 8 1000M Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

DS-3E0510HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

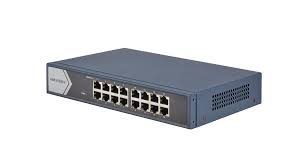

DS-3E0516-E(B) switch is a layer 2 gigabit Ethernet switch, providing 16 1000M Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

DS-3E0520HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

DS-3E0524-E(B) switch is a layer 2 gigabit Ethernet switch, providing 24 1000M Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

The Hikvision DS-3E0524TF Series Unmanaged Switch is layer 2 network switches, providing 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port. It is reliable, easy to install and maintain, and equipped with rapid switch function. It has multiple access ports, and is applicable for access or aggregation and upload of small-scale LAN devices. It applies to center area and can access to camera and NVR, in charge of small-scale core data exchange.

DS-3E0528HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

DS-3E1510P-E switches are layer 2 PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access. The switches support Web management, various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on to ensure the data is uploaded steadily.

DS-3E1518P-E switches are layer 2 PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access. The switches support Web management, various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on to ensure the data is uploaded steadily.

DS-3E1526P-E switches are layer 2 PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access. The switches support Web management, various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on to ensure the data is uploaded steadily.

Key Features

• DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
• DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.
• DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.
• DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E23XXP Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E23XXP Series supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”; Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP
• Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E23XXP Series supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E23XXP Series supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E23XXP Series supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E23XXP Series many management modes such as the console port, Telnet, SSH;
• DS-3E23XXP Series supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• DS-3E23XXP Series supports TFTP-patterned file upload/download management;

Key Features

• DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
• DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.
• DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.
• DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E23XXP Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E23XXP Series supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E23XXP Series supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E23XXP Series supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E23XXP Series supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E23XXP Series many management modes such as the console port, Telnet, SSH;
• DS-3E23XXP Series supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• DS-3E23XXP Series supports TFTP-patterned file upload/download management;

Key Features

• DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
• DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate. DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.
• DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E23XXP Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E23XXP Series supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E23XXP Series supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E23XXP Series supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E23XXP Series supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E23XXP Series many management modes such as the console port, Telnet, SSH;
• DS-3E23XXP Series supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• DS-3E23XXP Series supports TFTP-patterned file upload/download management;

Key Features

• DS-3E2510P supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E2510P has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E2510P supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E2510P supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E2510P supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
• DS-3E2510P supports the configuration of Base-T port priority when the power is inadequate.
• DS-3E2510P supports POE port and up to 4KV power thunder-proof.
• DS-3E2510P supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E2510P provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E2510P supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E2510P supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E2510P supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E2510P supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E2510P supports many management modes such as the console port, Telnet, SSH;
• DS-3E2510P supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• DS-3E2510P supports TFTP-patterned file upload/download management;

Key Features

• DS-3E2528 supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E2528 has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E2528 supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E2528 supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E2528 supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E2528 provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E2528 supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E2528 supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E2528 supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E2528 supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E2528 supports many management modes such as the console port, Telnet, SSH;
• DS-3E2528 supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• DS-3E2528 supports TFTP-patterned file upload/download management;

Key Features

• DS-3E2528P supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E2528P has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E2528P supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E2528P supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E2528P supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
• DS-3E2528P supports the configuration of Base-T port priority when the power is inadequate.
• DS-3E2528P supports POE port and up to 4KV power thunder-proof.
• DS-3E2528P supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E2528P provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E2528P supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E2528P supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E2528P supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E2528P supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E2528P supports many management modes such as the console port, Telnet, SSH;
• DS-3E2528P supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• DS-3E2528P supports TFTP-patterned file upload/download management;

Key Features

• DS-3E3740 supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E3740 has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E3740 supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E3740 Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E3740 supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E3740 provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E3740 supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E3740 supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E3740 supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E3740 supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E3756TF Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, DHCPv6, etc；Supports IPv6 tunnel: manual tunnel, automatic tunnel, GRE tunnel, 6to4 tunnel, ISATAP； Supports IPv4 transiting to IPv6: IPv6 manual tunnel, automatic tunnel, 6 to 4 tunnel, ISATAP tunnel.
• DS-3E3756TF supports many management modes such as the console port, Telnet, SSH;
• DS-3E3740 supports many management modes such as the console port, Telnet, SSH;
• DS-3E3740 supports the WEB management mode, which is easy and efficient so that it makes installation

Key Features

• DS-3E3756TF supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• DS-3E3756TF has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• DS-3E3756TF supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• DS-3E3756TF supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• DS-3E3756TF supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• DS-3E3756TF provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• DS-3E3756TF supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• DS-3E3756TF supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• DS-3E3756TF supports perfect ring detection mechanism which ensures the long-term stable running of network;
• DS-3E3756TF supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• DS-3E3756TF Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, DHCPv6, etc；Supports IPv6 tunnel: manual tunnel, automatic tunnel, GRE tunnel, 6to4 tunnel, ISATAP； Supports IPv4 transiting to IPv6: IPv6 manual tunnel, automatic tunnel, 6 to 4 tunnel, ISATAP tunnel.
• DS-3E3756TF supports many management modes such as the console port, Telnet, SSH;
• DS-3E3756TF supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;

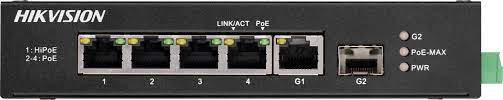

DS-3T0306HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
